Description
| CRIMP OD | 100R1 HOSE | 100R16 HOSE | 100R2 Hose |
| -4 | 0.681 | 0.696 | 0.724 |
| -6 | 0.755 | 0.775 | 0.811 |
| -8 | 0.874 | 0.881 | 0.921 |
| -10 | 1.030 | 1.030 | 1.070 |
*Not Compatible with Weatherhead Crimpers*

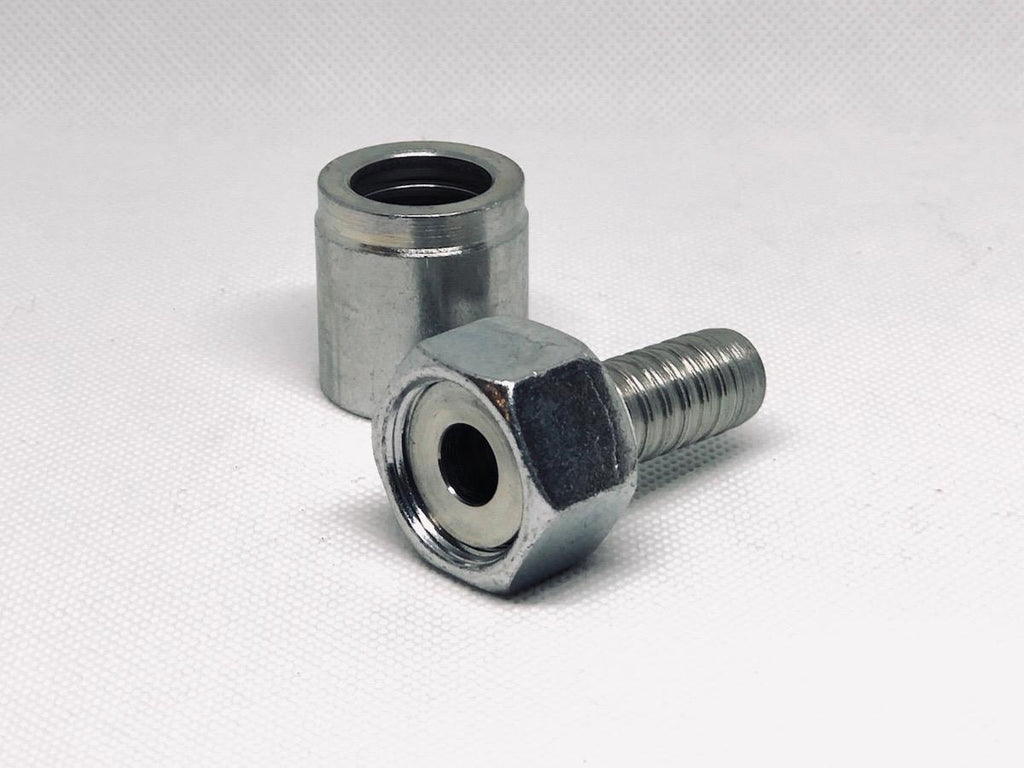

Straight Female Metric O-Ring Face Seal Hose Barbs, in various sizes and styles.
These Metric Flat Face fittings conform to the GB/T 9065.3 specifications.
Not Available through Parker, Gates or Eaton.
Custom Made.
For more information see below, or contact one of our salesmen at 434-392-9833.
